China Supplier BC-354 Rf Control 5A 4 Channels RGBW Led Light Controller

FOB Reference Price:Get Latest Price
US $10-40 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
3000000 Set/Sets per Month
Port:
Zhuhai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Bincolor
Model Number:
BC-354
Type:
Manual Switch
Max. Load Power:
240w 480w
Voltage:
DC12V-24V
LED Color:
RGB+White
Scale levels:
4096 level *4 channels
Remote control distance:
30m with obstacle, 60m without obstacle
Product name:
China supplier rf control 5A 4 channels RGBW led light controller
Input Voltage:
DC12V-24V
Output Current:
5A*4CH
Output power:
240W-480W
Mode:
37 modes
Dimension:
176*46*30mm
Weight:
210g
Packaging & Delivery
Packaging Details
China supplier rf control 5A 4 channels RGBW led light controller
neutral package
Delivery Time
7 working days

China supplier rf control 5A 4 channels RGBW led light controller

   Welcome to use this RGBW controller, it is a universal high-performance power controller for entire color changing which adopted PWM(Pulse-Width-Modulation) controlling technology. Controls all common anode constant voltage RGBW LED light, such as RGBW full color LED module,LED strip,LED SMD tape,etc. It can be controlled by the RF remote within the effective area no matter the direction and obstacles.





Specification:

Model:                                   Rotary RGBW controller

Input current:                         DC12V- DC24V

Output current:                      240W(12V) / 480W(24V)

Scale levels:                          4096 level*4

Built-in mode:                         37 modes

Speed level:                           16 levels

Brightness level:                    16 levels

Remote control distance:       30m with obstacle, 60m without obstacle

Dimension:                             L176*W46*H30(mm)

Weight:                                   210g





Function and feature:

1. Automatically adapted input voltage DC12V-24V.

2. 37 changing modes such as skipping, smooth,etc., RGBW 4096 grey scale levels each.

3. The LED digital tube indicates current mode, speed and brightness, very straightforward.

4. 4 dimming rotary knobs, conforms to the special treatment of human eye’s feature, can DIY
    your favorite color.

5. Save your DIY color Automatically, and call out it by remote control.

6. Over current protection and short circuit protection.

7. Work with power repeater, the power can be amplified unlimitedly.

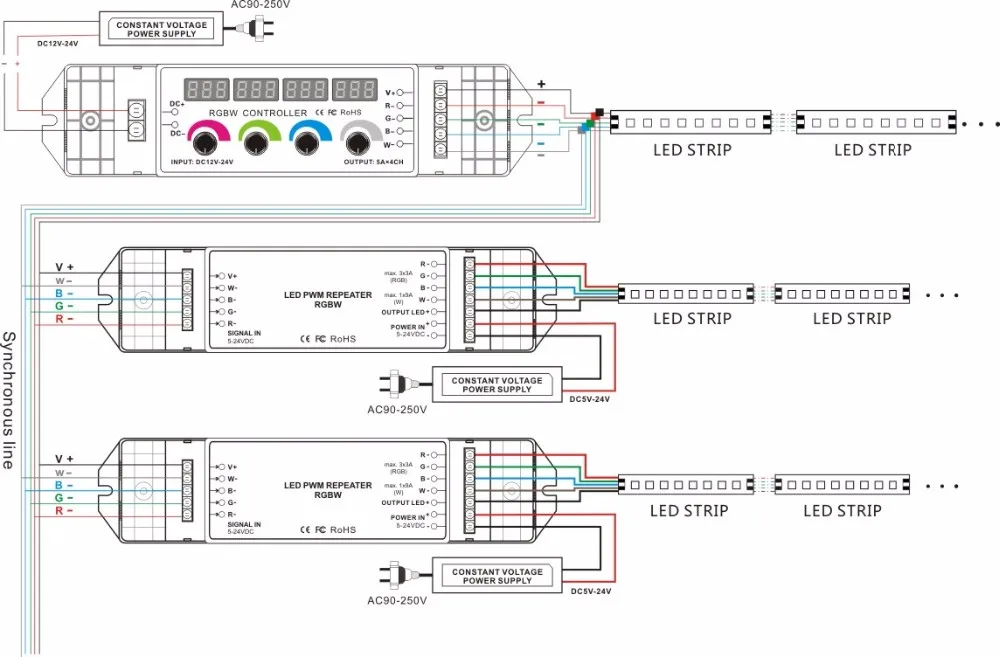

Conjunction Diagram:

1. Conjunction diagram of LED constant voltage strip.


2. Connect to power repeater (the controller and the amplifer can share the same power supply)

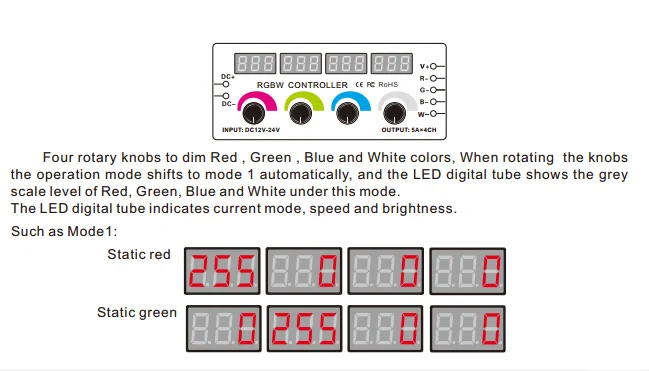

Operation Instruction:

Application




Related Products
Aging test

All the products will process aging test before ship out. Quality guarantee.



Packaging & Shipping

After inspection the goods are packed in white inner box and then carefully packed in cartons.





Shipping

INTERNATIONAL AIR MAIL

Payment

Fast Delivery

Our Services

1. Professional advice according to your needs.

2. Instant response to your inquiries.

3. Short lead-time, quick delivery.

4. Three years warranty for all of our products.

5. Samples orders, OEM/ODM orders are also welcomed.

Company Information

We are leading Manufacturer of LED controllers in Zhuhai, Guangdong province, China.

We are small, flexible and loyal. Ideal partner of your customize order.

We are strong in developing OEM and ODM projects, and customer's rights are the first things we consider about.

We are very competitive in price, well reputed for quality product and prompt delivery.



Welcome to discuss more in details.









FAQ

1. How many years warranty of Bincolor items?

3 years warranty.

2. What kinds of export certifications of Bincolor items?

All Bincolor items pass CE, RoHS and FCC.

3. Could you provide the OEM or ODM service?

Bincolor have rich experience in OEM and ODM service, R&D the products completely according to customers’ demands.

4. Do all items design by your company?

All of our products are independent research and development production.

5. How long is the delivery time?

Within 1-3 working days for routine quantity, goods usually can be sent out on the same day or the next day. Within 20 working days for large quantity. Accurate time is according to the actual inventory.







Any other question, welcome to contact me, all question will be answered within 24 hours or immediately on instant contact!
